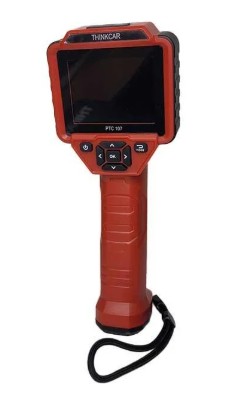

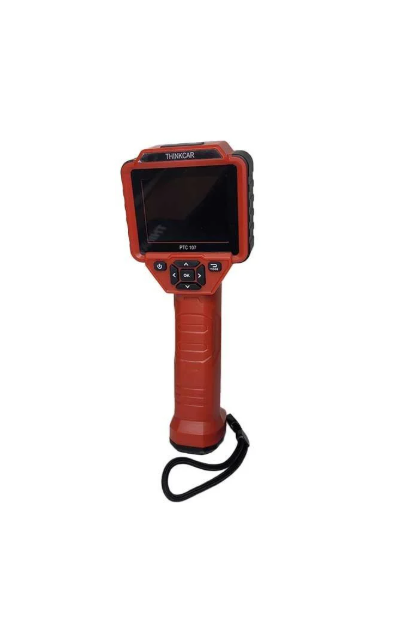

Thinkcar PTC107 – Professional Portable Thermal Imaging Camera

The Thinkcar PTC107 Thermal Imaging Camera is a high-performance, handheld infrared tool designed for precise temperature diagnostics across automotive, industrial, and electrical applications. With advanced imaging technology, rugged construction, and long battery life, the PTC107 delivers reliable results in even the most demanding environments.

Key Advantages of the Thinkcar PTC107 Thermal Imaging Camera

Wide Temperature Detection Range

The Thinkcar PTC107 supports an extensive –20°C to 550°C temperature range, making it ideal for both everyday use and extreme operating conditions.
Its high-performance VOx infrared sensor delivers a sharp 256 × 192 resolution, providing accurate thermal images with a temperature accuracy of ±2°C.

Innovative & Compact Design

Featuring a 2.8-inch HD display, the PTC107 showcases crisp thermal images and allows technicians to generate professional diagnostic reports with ease.
Its compact, ergonomic design makes it comfortable for long-term use in automotive workshops or field environments.

• 4 imaging modes: Thermal imaging, visible light, fusion, and picture-in-picture
• 6 color palettes: Choose from multiple gradient colour schemes for clear temperature interpretation
• Dual-camera system: Infrared + visible light for enhanced clarity and precision

Perfect for technicians who require quick, reliable visibility into temperature differences during vehicle inspections.

Durable, Rugged Construction

Built for tough working conditions, the Thinkcar PTC107 has passed rigorous drop-testing and features a durable IP54-rated housing to protect against dust, dirt, and oil.

Advanced Temperature Measurement Tools

The PTC107 offers three dedicated temperature measurement modes:

• Center point temperature
• Highest temperature
• Lowest temperature

It also supports video recording, enabling users to capture abnormal thermal patterns for future analysis or reporting.

Exceptional Battery Life

With a built-in 3200mAh battery, the PTC107 delivers up to 10 hours of continuous operation after a full 4-hour charge—ideal for full-day diagnostic sessions.

Automotive Diagnostic Applications

The Thinkcar PTC107 is engineered for the automotive maintenance and repair industry, offering fast, non-contact temperature diagnostics for a wide range of systems.

Engine Diagnostics

Identify overheating components—such as cylinder blocks and turbochargers—to prevent engine damage or potential cylinder failure.

Electrical System Testing

Pinpoint abnormal heat buildup in battery packs, wiring harnesses, and connectors to prevent short circuits and fire risks.

Brake System Analysis

Evaluate brake pad friction temperatures to assess wear patterns and braking efficiency.

Air Conditioning & Refrigeration Efficiency

Visually analyse temperature distribution in A/C lines to optimize refrigerant levels and improve cooling performance.

EV & Hybrid Vehicle Maintenance

Monitor the temperature behaviour of high-voltage battery packs, motors, and power electronics to ensure safe operation.

Technical Specifications – Thinkcar PTC107

• Detector Type: VOx microbolometer
• Infrared Resolution: 256 × 192
• Pixel Size: 12 μm
• NETD: ≤40 mK (@25°C, F#1.0)
• Wavelength Range: 8–14 μm
• Frame Rate: 25 Hz
• Focal Length: 3.5 mm
• FOV: 50° × 37.2°
• IFOV: 3.43 mrad
• Focus Mode: Fixed focus
• Operating Temperature: –10°C to 50°C
• Storage Temperature: –20°C to 60°C
• Temperature Range: –20°C to 550°C
• Accuracy: ±2°C / ±2>#/p###
• Temperature Display Modes: Center, highest, lowest
• Screen: 2.8" display
• Visible Camera: 2MP (1600 × 1200)
• Power Consumption: 1.6W
• Interface: USB Type-C
• Battery: 3200mAh (non-removable)
• Protection Rating: IP54
• Dimensions: 240 × 88 × 72 mm
• Weight: 335g
