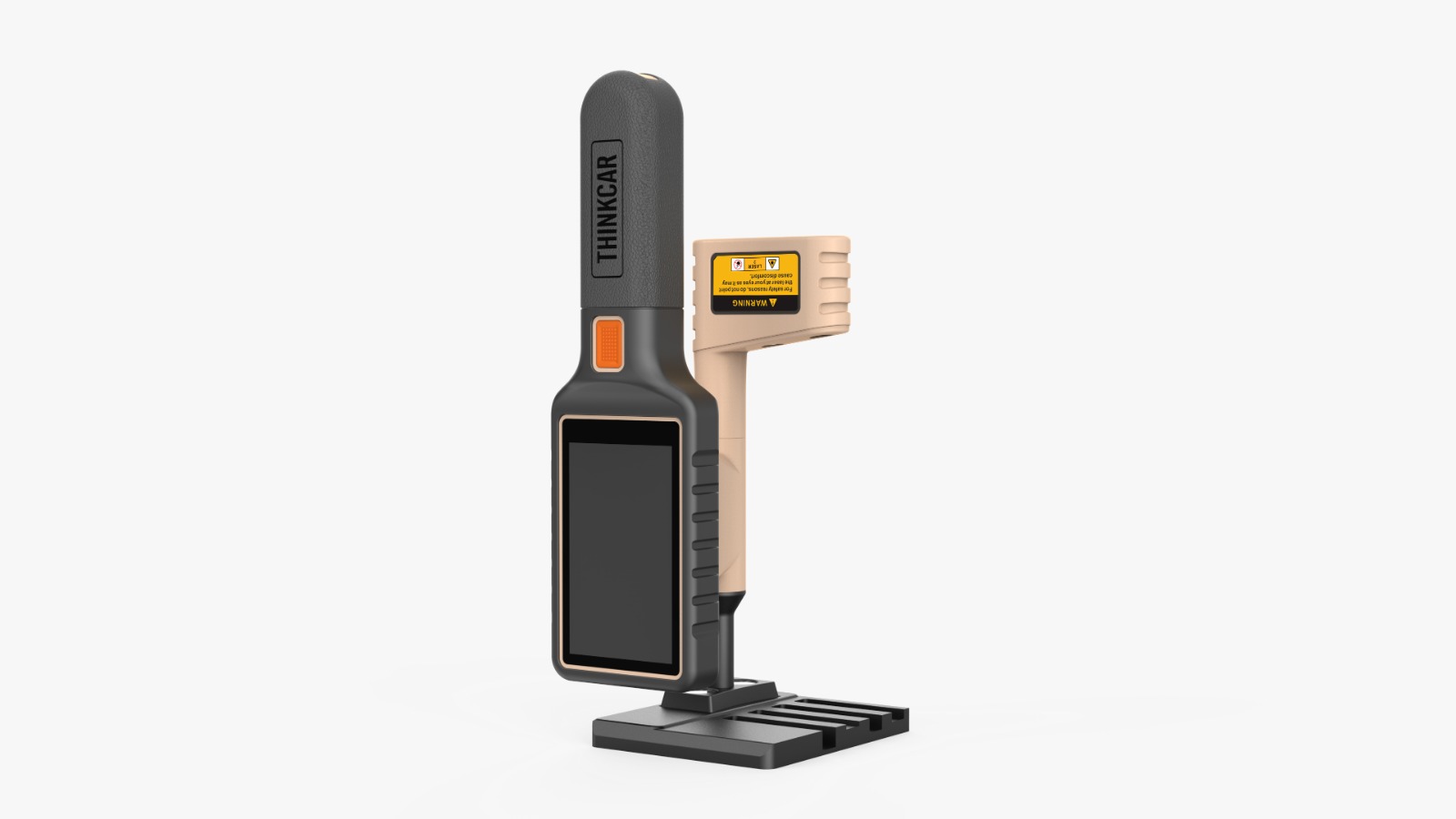

The THINKCAR THT118 is a cutting-edge handheld tyre-tread inspection tool designed for workshops, MOT centres, tyre outlets and mobile technicians who need fast, accurate and reliable tyre-condition reporting. Using advanced laser measurement and image-recognition technology, it delivers precise tread-depth data and detailed condition analysis in just seconds.
Key Features
Ultra-High Precision – Accurate to 0.1 mm
The THT118 provides exceptional measurement accuracy, ensuring technicians can confidently assess tyre safety, legal compliance and wear levels.
Full-Tread or Single-Groove Measurement Modes
Switch between full-tread scanning or individual groove measurement to suit different tyre designs, conditions and customer requirements.
Fast Scanning – Single-Tyre Data in Just 3 Seconds
Boost workshop efficiency with tyre measurements delivered in approximately three seconds per tyre.
DOT Identification for Warranty & Manufacture Date
Scan DOT codes to automatically identify tyre production dates, warranty periods and insert tyre photographs directly into inspection reports.
Professional Report Generation with One-Click Sharing
Generate full tyre-condition reports including:
- Individual tread-depth readings
- Wear-level evaluation
- Estimated braking-distance impact
- Maintenance and replacement recommendations
Reports can be shared instantly via a QR code or saved to connected terminal devices for customer communication and record-keeping.
Compact, Portable & Workshop-Ready
The THT118 is lightweight, easy to handle and supports non-disassembly inspection on over 80% of vehicle models, making it ideal for reception-bay checks, MOT pre-tests and mobile services.
Product Functions
- Tyre Tread Depth Measurement: Full-surface measurement or precise single-groove detection
- Custom Testing Parameters: Set number of tyres (up to 6), measurement units and tread-depth standards
- Tyre Information Scanning: Capture DOT codes and add tyre images directly into reports
- Smart Report System: Includes wear analysis, braking-distance estimation and maintenance recommendations
- Equipment Calibration: Compatible with calibration block for long-term measurement accuracy
- System Controls: Wi-Fi, language settings, screen brightness, auto-sleep and software updates
Technical Specifications
- CPU: RK3326s
- Memory: 2GB
- Storage: 32GB
- Display: 3.97" LCD touchscreen (800×480)
- Measuring Camera: 2MP
- Photography Camera: 8MP
- Accuracy: 0.1 mm
- Measurable Tread Depth: 2–15 mm
- Maximum Supported Tyre Width: 180 mm
- Connectivity: Dual-band Wi-Fi (2.4 GHz / 5 GHz) & Bluetooth
- Battery: 5000 mAh, 3.7 V
- Charging Input: 5 V / 2 A
- Operating Temperature: 0°C to 45°C
- Storage Temperature: –20°C to 60°C
- Net Weight: 2.1 kg
- Gross Weight: 2.5 kg
- Package Size: 348 × 137 × 273 mm
Ideal For
- MOT stations
- Tyre retail & fast-fit centres
- Independent garages
- Mobile tyre-service technicians
- Dealership service departments
- Fleet-maintenance providers
