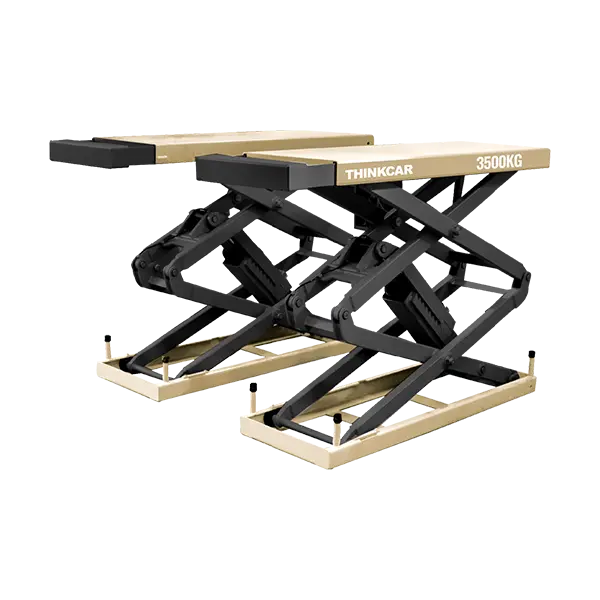

THINKCAR TVL 635 – Scissor lift
- Underground installation, which saves work space.
- The platform length is adjustable and suitable for different models.
- Hydraulic volume synchronized cylinder, platform operation is
synchronous and stable. - 24V limit control box, safe, simple and convenient.
- Hydraulic lock and mechanical double-tooth safety claw, double
insurance, safe and reliable. - Overload redundancy design, passed 120% dynamic load and
150% static load test.
Specifications
- Rated load: 3500 kg
- Lifting height: 2130mm
- Output height: 330mm
- Lifting time: ≤55s
- Deceleration time: ≥20s
- Platform length: Standard 1550-1740mm, double pull 1650-2040mm
- Platform width: 550mm
- Power: 2.2kw
- Voltage: 220V/380V
- Hydraulic oil: 12L (winter: N32# summer: N46#)
- Net weight: Standard 696 kg, double extension 722 kg
- Working temperature: -5-40°C
- Air pressure: 0.6-0.8Mpa
- Drive mode: electro-hydraulic
